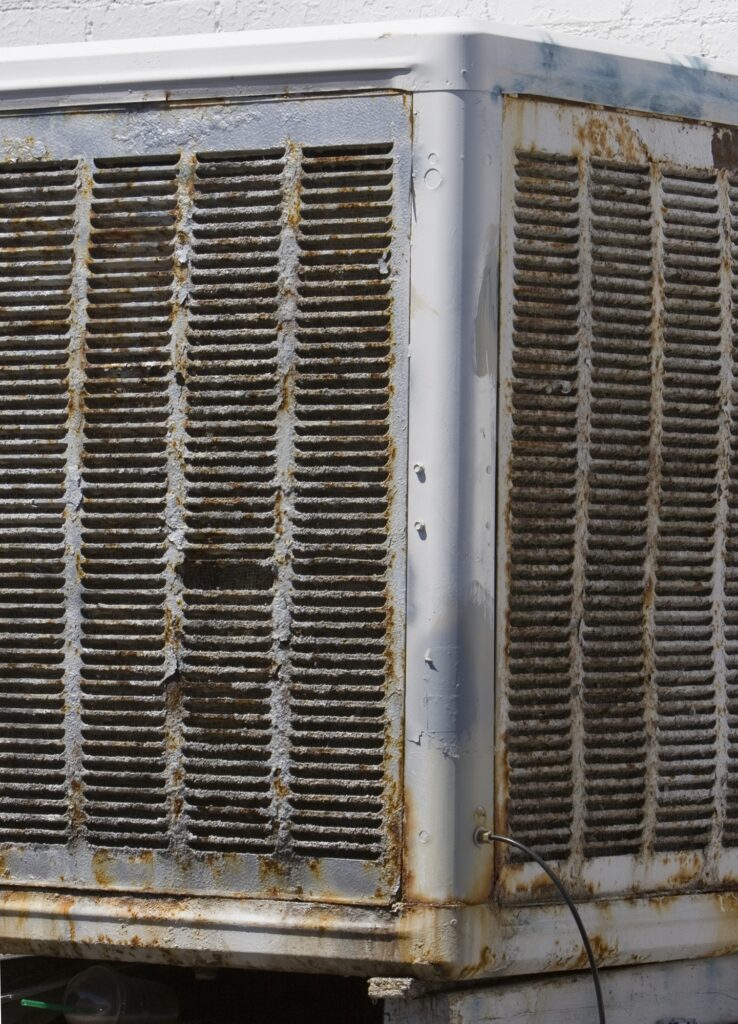

How Hard Water Destroys Swamp Cooler Pads and Clogs Distribution Lines
Downey Plumbing Heating & Air Conditioning, verified with the California State License Board under CA License #731172, BBB A+ Accredited, and rated 4.8 stars across 850+ verified Yelp reviews, has serviced evaporative coolers throughout Downey and surrounding Southern California communities for over 90 years. The pattern our technicians see is consistent: swamp cooler pads that look clean from a distance are calcified solid inside. Distribution headers that appear intact are nearly completely blocked at the emitters. The culprit is the same one affecting every water-using appliance in the greater Los Angeles area, the hard water in the LADWP supply.
The Los Angeles Department of Water and Power reports average water hardness in the LADWP service area between 171 and 257 ppm, classified as hard to very hard depending on the seasonal source water blend. Independent testing across the broader LA County service area shows values ranging from 125 to 340 ppm depending on neighborhood and which water sources are active. When an evaporative cooler runs 8 to 10 hours daily through a Southern California summer, evaporating 5 to 15 gallons of water each day, the minerals in that water do not evaporate with it. They stay behind and accumulate on every wet surface inside the system.
Call 562-646-1221 or contact us online for swamp cooler inspection, pad replacement, distribution cleaning, and complete system service. See our swamp cooler installation and repair service for the full list of evaporative cooler services available.
How Evaporative Coolers Work, And Why Water Chemistry Matters
An evaporative cooler works by drawing hot dry outdoor air through pads saturated with water. As the air passes through the wet pad material, water evaporates and the air temperature drops by 15 to 25 degrees Fahrenheit, depending on outdoor temperature and humidity. A pump circulates water from the reservoir at the base of the unit to distribution headers at the top, which drip water down through the pad media continuously during operation.
This process depends entirely on the pad material maintaining open passages for both water saturation and airflow, and on the distribution system delivering water evenly across the full pad surface. When those two functions are compromised, cooling output drops. Hard water compromises both of them progressively through every hour of operation.
How Hard Water Destroys Evaporative Cooler Pads
Evaporative cooler pads are made from aspen wood fibers, rigid cellulose media, or synthetic fiber material, all designed with high surface area to maximize the contact between air and water that creates the cooling effect. This same high surface area also maximizes mineral deposition.
Each time water evaporates from the surface of a pad fiber, the dissolved calcium and magnesium carbonate minerals remain on the fiber rather than evaporating with the water. As the
The deposit process is progressive. Early in the season, a thin scale layer forms on each fiber. As the season continues, more layers accumulate. The scale fills the tiny passages through which air must flow. Airflow resistance increases. The cooling fan must work harder to move the same volume of air, reducing total airflow into the building. Where scale is heavy, dry spots develop because water can no longer wick evenly through the calcified fibers, reducing the wetted surface area available for evaporation.
Homeowners typically notice progressively weaker cooling and less airflow from their system by mid to late season. Most assume the unit is simply aging or worn out. In many cases, the problem is pad scale that a complete pad replacement would immediately resolve.
How Hard Water Clogs Distribution Headers and Emitter Lines
The distribution headers and feed lines carry water from the pump to the top of the pads, releasing it through small emitter holes typically 1/8 to 3/16 inches in diameter. Mineral scale builds on every interior wet surface, including the emitter openings where water velocity drops just before each drip exits.
Partially clogged emitters produce uneven pad saturation. Some sections of the pad receive adequate water while others begin drying out between drips. Dry sections of pad pass air without cooling it, exactly the opposite of what the system needs. The wet sections now carry the full evaporative load, experience more concentrated mineral deposition, and deteriorate faster. As more emitters clog completely, sections of pad go entirely dry and the cooling output loss becomes noticeable.
Fully clogged distribution systems can render an otherwise mechanically sound evaporative cooler nearly non-functional. Distribution line replacement or thorough descaling restores full pad saturation and returns the system to normal output.
The Secondary Effects: Pump and Float Valve Damage
Water Pump Wear
The water pump circulates water from the mineral-concentrating reservoir continuously during operation. Scale deposits accumulate on the pump impeller and housing, reducing hydraulic efficiency and requiring the motor to work harder to maintain flow. Annual reservoir flushing dilutes mineral concentration in the water the pump operates in and reduces scale accumulation on the impeller over the season.
Float Valve Failure
The float valve controls the water level in the reservoir by opening when the level drops and closing when it reaches the target level. Hard water mineral scale deposits on the float mechanism, the valve seat, and the valve body. Scale on the float can prevent it from closing fully, causing continuous water overflow and waste. Scale on the valve seat prevents a proper seal at any position. Both conditions are common in hard water service areas and require inspection and cleaning or replacement during annual maintenance.
Local Context: Why This Problem Is Pronounced in the Downey Area
The Los Angeles Department of Water and Power blends water from the Colorado River, the State Water Project, and local groundwater sources. The LADWP Water Quality FAQ confirms that hardness is expressed primarily as calcium carbonate (CaCO3) and that the hardness level varies with the seasonal source blend. During dry years and drought periods, heavier reliance on Colorado River water pushes local hardness toward the upper range, the same periods when evaporative coolers run the most hours and accumulate the most mineral deposits.
This creates a compounding problem in dry years: harder water, more operating hours, and more mineral accumulation per season. Homeowners running swamp coolers during a dry Southern California summer are exposing their systems to the most aggressive mineral scaling conditions simultaneously.
What You Can Do: Prevention and Service Schedule
- Annual pad replacement: Replace evaporative cooler pads at the start of each cooling season regardless of visible condition, scale permeates pad fiber before it’s obvious from outside
- Distribution header cleaning: Soak and flush distribution lines in dilute white vinegar solution during annual maintenance to clear emitter openings before scale fully blocks flow
- Reservoir flushing: Flush the reservoir at least twice during the cooling season to remove concentrated mineral water and reduce the hardness of the water the pump is circulating
- Float valve inspection: Check float valve operation during annual maintenance and clean or replace if scale has affected closing or sealing function
- Water filtration: A whole-home water filtration or softening system reduces the mineral load entering the evaporative cooler, the most complete long-term protection against hard water damage to all water-using appliances
| Why Choose Downey Plumbing | What It Means for You |
| CA License #731172 (CSLB) | Verify credentials at cslb.ca.gov before hiring any contractor |
| BBB A+ Accreditation | Highest BBB rating with zero unresolved complaints |
| 850+ Yelp Reviews, 4.8 Stars | Real customer quality proof across hundreds of Southern California service calls |
| Serving the Region Since 1930 | 90+ years of local expertise no newer company can match |
| Fully Licensed and Insured | General liability and workers compensation protecting your property |
| 24/7 Emergency Service | Licensed on-call technicians available at any hour |
Frequently Asked Questions: Hard Water and Evaporative Coolers
What is water hardness and how is it measured?
Water hardness measures the concentration of dissolved calcium and magnesium minerals in water, typically reported in parts per million (ppm) or grains per gallon (gpg). Water below 60 ppm is considered soft. Water between 120 and 180 ppm is hard. Water above 180 ppm is classified as very hard. The Los Angeles Department of Water and Power reports average water hardness in the LADWP service area at approximately 171 to 257 ppm, with values reaching higher in some neighborhoods depending on which source water is active at the time.
How hard is the water in Downey and the surrounding Southern California communities?
Downey and surrounding communities including Bellflower, Norwalk, Paramount, and South Gate receive water primarily through the Los Angeles Department of Water and Power. LADWP water hardness averages between 171 and 257 ppm depending on the seasonal blend of Colorado River water and State Water Project supply. Colorado River water tends to be harder, pushing local hardness toward the higher end of this range during dry years. Independent testing data across the service area shows values ranging from 125 to 340 ppm depending on the neighborhood and season.
What materials are evaporative cooler pads made of and why do they collect mineral scale?
Evaporative cooler pads are typically made from aspen wood fibers, rigid cellulose media, or synthetic fiber materials. These are deliberately designed with high surface area to maximize contact between dry air and water, which is what produces the cooling effect. This same high surface area also maximizes mineral deposition: as water evaporates from each fiber surface, the dissolved minerals in the water are left behind rather than evaporating with the water. Over time, these deposits accumulate layer by layer, progressively filling the tiny air passages through the pad.
How quickly does hard water visibly damage evaporative cooler pads?
In the Downey area’s hard water environment, significant visible scale accumulation can appear on evaporative cooler pads within a single cooling season of regular operation. An evaporative cooler running eight to ten hours daily evaporates roughly 5 to 15 gallons of water per day depending on conditions. At 200 ppm mineral content, each gallon that evaporates leaves approximately 0.2 grams of mineral solids on the pad surface. After 150 days of operation, that accumulation is substantial. Systems that are not flushed or whose pads are not replaced annually typically show heavy scale by the second season.
What does mineral scale on evaporative cooler pads do to cooling output?
Scale-clogged pads restrict the airflow that the evaporative cooler depends on to draw hot outdoor air through the wet pad media. As mineral deposits fill the gaps in the pad fiber structure, the fan must work harder to move the same volume of air, reducing total airflow. Where scale is heavy, dry spots develop in the pad because water cannot wick evenly through the calcified fibers, reducing the wetted surface area participating in evaporation. Reduced airflow and reduced evaporation both directly lower cooling output. Homeowners often notice the system running without producing adequate cooling before they identify mineral-clogged pads as the cause.
How does hard water clog the distribution lines and headers on a swamp cooler?
Distribution lines and headers are the tubes and manifolds that carry water from the pump to the top edge of the cooling pads, releasing it evenly across the pad surface through small emitter holes or drip holes. These orifices are typically 1/8 to 3/16 inches in diameter. Mineral scale deposits on every wet surface including the interior walls of distribution lines and particularly at emitter openings where water slows before dripping. Partial clogging creates uneven pad saturation. Full clogging of some emitters leaves sections of pad dry, concentrating mineral deposition on the still-wet areas and accelerating scale buildup at those points.
Can I clean mineral scale off evaporative cooler pads or do they need to be replaced?
Moderate scale deposits on cellulose or aspen pads can sometimes be loosened with dilute white vinegar or commercial coil cleaner, but cleaning pad interiors effectively is difficult because the scale permeates the full depth of the pad fiber. Surface cleaning typically removes some visible deposits while leaving deeper scale in place. In most hard water environments, annual pad replacement is the practical approach because the cost of replacing pads is modest compared to the labor time of thorough cleaning, and replacement guarantees full airflow restoration rather than partial improvement. Synthetic pads may tolerate soaking and rinsing more effectively than aspen pads.
How often should evaporative cooler pads be replaced in a hard water area like Downey?
In the Downey area’s hard water environment, annual pad replacement before each cooling season is the standard recommendation. Many HVAC professionals in this market recommend replacing pads at the beginning of the season rather than waiting for visible clogging, because pad performance degrades progressively throughout the season and early replacement ensures maximum efficiency from the first hot day. Systems with very heavy hard water exposure, particularly properties at the higher end of the local hardness range, may benefit from mid-season pad inspection and possible second replacement during extended seasons.
What are the signs that hard water has specifically damaged my swamp cooler’s distribution system?
Signs of distribution system clogging include sections of the evaporative pad that appear dry or lighter in color than surrounding areas during operation, visibly crusty white or grey deposits on the distribution header tubing or emitter openings, reduced water flow observable at the pad surface compared to when the system was new, water flowing unevenly and concentrating at certain pad sections, and in some cases gurgling or intermittent flow from distribution lines as partial clogging creates air pockets in the distribution path. Removing and inspecting distribution lines during annual maintenance reveals the extent of interior scale accumulation.
Does hard water damage the swamp cooler water pump?
Yes. The water pump circulates water from the reservoir to the distribution system continuously during operation. In hard water environments, mineral scale accumulates on the pump impeller and on the interior surfaces of the pump housing, reducing hydraulic efficiency and requiring the pump motor to work harder to maintain the same flow rate. The pump also draws water from the reservoir, which concentrates minerals as evaporation occurs. Extended operation in hard water without reservoir flushing means the pump operates in progressively more mineral-rich water. Annual pump inspection and reservoir flushing reduces premature pump wear in hard water service areas.
Can a water filtration system protect my swamp cooler from hard water damage?
Yes. Installing a whole-home water softener or a dedicated filtration system on the water supply line to the evaporative cooler significantly reduces mineral load entering the system. Softened water dramatically extends pad life and keeps distribution lines clear. Reverse osmosis systems that reduce mineral content are another option, though they are typically sized for point-of-use applications. Even a partial reduction in water hardness reduces the rate of mineral accumulation meaningfully. Some homeowners in the Downey area also use a swamp cooler water treatment tablet that helps keep minerals in solution and reduces precipitation on surfaces.
What is the float valve in an evaporative cooler and how does hard water affect it?
The float valve in an evaporative cooler’s reservoir works similarly to the float valve in a toilet tank, it controls the water level by opening to allow water in when the level drops and closing when it reaches the set level. Hard water mineral scale deposits on the float mechanism, on the valve seat, and on the valve body. Scale on the float can weigh it down or cause it to stick, preventing proper closure and leading to continuous water overflow. Scale on the valve seat prevents the valve from sealing fully. Both conditions waste water and indicate that the float assembly should be inspected and cleaned or replaced during annual service.
How do I descale the distribution lines on my swamp cooler at home?
Descaling distribution lines at home involves removing the lines from the evaporative cooler, soaking them in a dilute white vinegar solution (one part vinegar to four parts water) for 30 to 60 minutes to dissolve calcium carbonate deposits, then flushing thoroughly with clean water. A thin bottle brush can help loosen scale from inside the lines. Emitter holes can be cleared with a thin wire or pin. The reservoir pan should also be scrubbed and rinsed during this process. For systems with heavy mineral accumulation or calcification that resists vinegar treatment, professional descaling with stronger commercial coil cleaners and proper neutralization may be needed.
Does hard water reduce swamp cooler efficiency even before pads are visibly clogged?
Yes. Efficiency reduction from mineral accumulation begins before visible clogging appears. As the very first layer of scale forms on pad fibers, the thermal conductivity of the mineral layer reduces heat transfer between the circulating water and the air passing through the pad. Even minor scale accumulation on distribution emitter orifices changes the droplet pattern and saturation distribution across the pad surface. The pump’s hydraulic efficiency begins declining as the earliest scale deposits form on the impeller. These incremental efficiency losses are not individually dramatic but compound over an operating season.
When does hard water damage to a swamp cooler require professional repair rather than maintenance?
Professional service is appropriate when the water pump fails to maintain adequate flow pressure despite cleaning, indicating mechanical wear from hard water operation. A pump that hums but does not produce flow, that produces significantly less pressure than when new, or that has visible scale damage to the impeller requires professional assessment. Distribution systems where soaking and flushing does not restore adequate flow may have scale deposits that have calcified beyond DIY removal. Float valve assemblies that leak continuously despite cleaning warrant replacement. When annual maintenance reveals that multiple components are simultaneously affected by hard water damage, a professional service call provides a complete system assessment.
